.085 in. (2.16mm)
Density
Miniature Ribbon
IDC, SUPERIBBON TM
All-Plastic

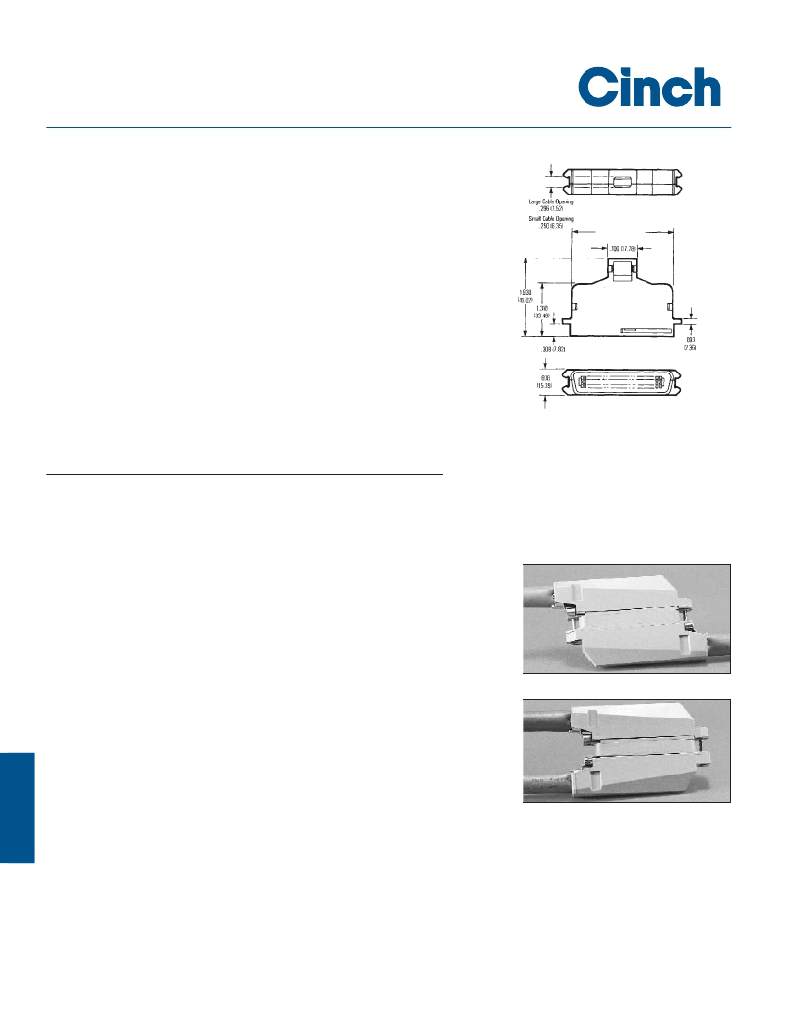

180° (Top-Entry) Cable
Snap-on plastic top-entry hoods are available separately to
provide strain relief to a cable when one of the mounting/
latching options from page 6-9 fits your requirements. See
page 6-53 for details and ordering information for top-entry
all-plastic hoods.
For bail latching applications, a 50-position size top-entry
plug is available. It locks with industry-standard bail latches
for positive locking/unlocking without tools. It also locks with
InstaLatch latches for passive automatic latching.
For these products, insulator material is blue UL94V-0 rated
glass-filled polyester, and hood material is gray UL94V-0
rated glass-filled polyester.
Ordering Information, 180° (Top-Entry) Cable Bail Latching Plug
Solid Wire
Large (.296 " ) Cable Opening Small (.250 " ) Cable Opening
2.566(65.18)
Size
50
Commercial 30Au/Ni Commercial 30Au/Ni
77-32500LP 77-32500LPA 77-32500SP 77-32500SPA
90° (Standard) / 270° (Reverse) End-Entry Cable
End-Entry connectors include a hood and integral cable clamp for cable exit
from the end
of the connector.
?
?
The standard-orientation plug has the cable clamp on the position-1 end, and the
standard-orientation socket has the clamp on the high position end.
Cables may be extended end-to-end (i.e., “running cable”) by mating standard-
orientation plugs and sockets, or “doubled back” by mating a standard-orientation
connector with a reverse-orientation mate.
6
?
?
?
Cables may exit either direction on a cable-to-panel application by choosing
standard or reverse-orientation, depending on the desired direction of cable exit.
Pointed-nose versions of the standard-orientation, 50-position size are slightly
smaller than the square-end product and are suited to applications with limited
space such as bridging adapters, etc.
#4-40 versions include screws that are 3/4" long, suitable for locking directly to
the body of another connector. For locking to connectors panel-mounted with
screwlock hardware, shorter screws are required. See pages 6-51 thru 6-53 for
these and other accessories, such as dust covers.
Call Toll Free: 1 (800) 323-9612
6-10
Running Cable Application
Doubled-Back Cable Application
